PixLite® 16 Plug And Play Mk2

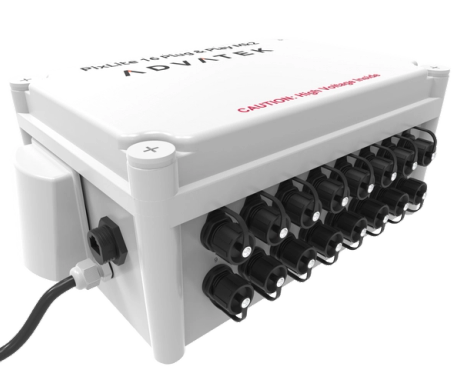

Name: PixLite 16 Plug and Play Mk2
SKU: I2n8uRi2dn

A highly flexible pixel control device running our 2nd generation processor. Directly connect your pixels with 300 - 320W of built in power. Typical lead time of 2 weeks.

For our newest generation products check out the PixLite® Mk3 Range

Features

Plug and Play form ideal for installations requiring fast, reliable setup
Up to 96 Universes of Art-Net or Streaming ACN (E1.31) to drive pixel LEDs
Wide range of pixel protocols and advanced configuration options

Specifications

Power

Input Voltage	88V-260V AC
Total Power	300W @ 5V / 320.4W @ 12V
Channel Power	18.75W @ 5V / 20W @ 12V

Data

Standard Outputs	16
Expanded Outputs	32
RGB Pixels/Output	1020
RGBW Pixels/Output	768
sACN or Art-Net Universes	96

Physical

Fused Pixel Outputs	16
Output Connector	4 Pin Advatek Male
Ethernet Inputs	1
Air Vents	2
Length	300mm
Width	200mm
Height	140mm
Weight	3kg
Enclosure	Polycarbonate
Mounting	Wall Mountable
Operating Temperature	-10°C to +60°C (Derating Applies > 50°C)

Other

Protection Grade	Rainproof, UV Resistant, Conformal Coated
Cooling	Active Fan
Warranty	1 Year
