Advatek PixLite® R1F-S
More pixels in more locations.

Meet the PixLite® R1F-S, Advatek’s newest long-range receiver, designed for flexibility and cost optimization.​ The R1F-S offers a 5-48V compatibility, higher current capacity, and a compact design perfect for tight spaces.

  • Single pixel output
  • Slimline form factor
  • Receiver and pixels can be driven at 5-48V
  • 10A throughput current
  • Multiple receivers cover a 300-meter radius from the transmitter
  • Ideal for installations requiring a sleek, low-profile unit
  • DIN rail mount
  • Flat surface mount
  • Tubular surface mount
  • Global certifications

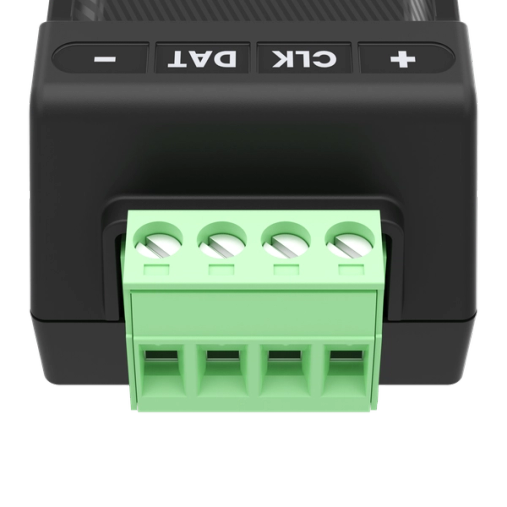

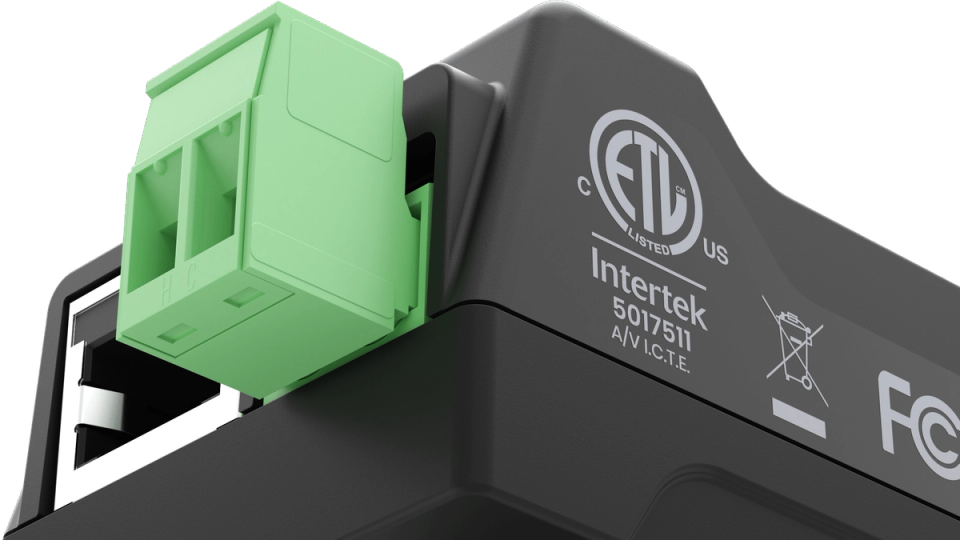

PixLite® R1F-S Detail
PixLite® R1F-S Detail
PixLite® R1F-S Detail
PixLite® R1F-S Detail

More Pixels in more locations with the R1F-S long range receiver.

Meet the PixLite® R1F-S, Advatek’s newest long-range receiver, designed for flexibility and cost optimization.​

The R1F-S offers a 5-48V compatibility, higher current capacity, and a compact design perfect for tight spaces. Paired with the PixLite® T16X-S Mk3, this system can reduce control costs by up to 40% in highly dispersed pixel installations, making it ideal for large-scale architectural projects and more.​

Advatek equipment is proudly designed & made at our headquarters in Australia for ultimate manufacturing quality control. Our products are covered by a five-year product warranty for your absolute peace of mind.

Maximum flexibility.

Supports 5-48V systems with a 10A throughput current.

Chat to one of our experts.
R1F-S with Mounting Clip
PixLite® R1F-S with Mounting Clip.

Comes with a versatile mounting clip for easy installation in a variety of locations.

Chat to one of our experts.
R1F-S and T16X-S Mk3
R1F-S and T16X-S Mk3

When a discrete location needs a single run of pixels, the PixLite® R1F-S and the PixLite® T16X-S Mk3 are the best choice. Fewer Transmitters, no wasted pixel outputs and reduced system cost and commissioning time.

Specifications

Pixel Outputs

1

Data Inputs (from Transmitter)

1

Dimensions

72 x 39 x 31mm

Weight

0.054kg

Enclosure Material

Black Polycarbonate

Mounting Option

Flat/Tubular Surface & DIN Rail Mount

Input Power

5V - 48V DC

Per Output Current Limit

10A

Ambient Operating Temperature

-20°C to +55°C

Compare the PixLite® Range

Advatek A4-S Mk3
Advatek E4-S Mk3
Advatek E16-S Mk3
Advatek T8-S Mk3
Advatek T16X-S Mk3
Advatek R2F-S
Advatek R4D-S
Advatek R1F-S

A4-S Mk3

E4-S Mk3

E16-S Mk3

T8-S Mk3

T16X-S Mk3

R2F-S

R4D-S

R1F-S

Pixel Outputs

4

4

16

16 (8 receivers)

16 (16 receivers)

2

4

1

Max RGB pixels per Output

1020

1020

1020

N/A

N/A

1020

510

1020

Powered Pixel Outputs

N/A

N/A

Max RGBW Pixels per Output

768

768

768

N/A

N/A

768

384

768

Expanded Mode Available

Clocked Pixels Supported

SHOWTime™

N/A

N/A

N/A

Record Live Data as Scenes

N/A

N/A

N/A

Create up to 25 Powerful Triggers

N/A

N/A

N/A

Use Scenes to Create Playlists

N/A

N/A

N/A

Playback to Pixel Outputs and/or Aux Port

N/A

N/A

N/A

Live and Programmed Intensity Control

N/A

N/A

N/A

N/A

Input Universes

24

24

96

96

96

N/A

N/A

N/A

sACN & Art-Net Supported

N/A

N/A

N/A

Art-Sync & sACN Sync

N/A

N/A

N/A

Universe Data Hardware Firewall

N/A

N/A

N/A

Monitor Data Source

N/A

N/A

N/A

Advanced Diagnostic Information per Universe

N/A

N/A

N/A

Auto Sync to Data Source Failback

N/A

N/A

N/A

Pixel Processing

Mk3

Mk3

Mk3

Mk3

Mk3

N/A

N/A

N/A

Number of Pixel Protocols Supported

80+

80+

80+

80+

N/A

N/A

N/A

N/A

Extreme Refresh Rates

N/A

N/A

N/A

Continued Support for New Pixel Protocols

N/A

N/A

N/A

Gamma Correction

N/A

N/A

N/A

Dithering

N/A

N/A

N/A

Advanced Mapping Options

N/A

N/A

N/A

Auto Patch

N/A

N/A

N/A

Hold Last Frame on Timeout Option

N/A

N/A

N/A

Auto Synchronization to Data Source

N/A

N/A

N/A

Drop Frame on Overrun Option

N/A

N/A

N/A

Adjustable Clock Speed

N/A

N/A

N/A

Power Management

Extensive

N/A

N/A

Limited

Limited

Smart Electronic Fuses on Pixel Outputs

N/A

N/A

Max Current per Pixel Output

7A

N/A

N/A

N/A

N/A

7.5A

7.5A

10A

Power Input Connector

1x Quick Connect Clamp

1 x Screw Terminal

1 x Screw Terminal

1x IEC

1 x IEC

1 x Quick Connect Clamp

1 x Quick Connect Clamp

1 x Screw Terminal

Pixels can be Powered Through PixLite®

N/A

N/A

Pixel Output Current Measurement

N/A

N/A

N/A

Device Monitoring

Extensive

Extensive

Extensive

Extensive

Extensive

N/A

N/A

N/A

Frame Rate Monitoring

N/A

N/A

N/A

Output Current Monitoring

N/A

N/A

N/A

N/A

N/A

N/A

N/A

Temperature Monitoring

N/A

N/A

N/A

Min & Max Temperature Monitoring

N/A

N/A

N/A

Input Voltage Monitoring

N/A

N/A

N/A

N/A

N/A

N/A

N/A

View Physical / Digital Version Info

Extensive

Extensive

Extensive

Extensive

Extensive

N/A

N/A

N/A

Ethernet Monitoring

N/A

N/A

N/A

Per-Universe Packet Monitoring

N/A

N/A

N/A

Sync Status

N/A

N/A

N/A

Discovery and Management

Advatek Assistant 3

Advatek Assistant 3

Advatek Assistant 3

Advatek Assistant 3

Advatek Assistant 3

N/A

N/A

N/A

Dynamic Web Browser Management Interface

N/A

N/A

N/A

Import / Export Configuration

N/A

N/A

N/A

Discovery / Recovery Protocol

Advanced

Advanced

Advanced

Advanced

Advanced

N/A

N/A

N/A

HTTP API

N/A

N/A

N/A

WebSocket API

N/A

N/A

N/A

VLANs and VPNs Supported

N/A

N/A

N/A

Device Name for Easy Identification

N/A

N/A

N/A

Ethernet Ports

Dual

Single

Single

Dual

Dual

N/A

N/A

N/A

Ethernet Speed

Gigabit

10/100 Mbps

10/100 Mbps

Gigabit

Gigabit

N/A

N/A

N/A

DHCP Addressing

N/A

N/A

N/A

Static IP Addressing

N/A

N/A

N/A

AutoIP Addressing

N/A

N/A

N/A

Aux Port

N/A

N/A

N/A

DMX512 Input

N/A

N/A

N/A

DMX512 Output

N/A

N/A

N/A

Hold Last Frame on Timeout Option

N/A

N/A

N/A

Auto Synchronization to Data Source

N/A

N/A

N/A

Drop Frame on Overrun Option

N/A

N/A

N/A

Mounting Options

19" Data Rack Mount

DIN Rail Mount

Flat Surface Mount

Certifications

ETL Listing (UL)

RoHS

UKCA

CE

RCM

FCC

ICES3

Fault Protection

ESD Protection on all I/O

Pixel Output Power – Over Current & Short Circuit Protection

Smart Electronic Fuses

N/A

N/A

N/A

N/A

Removable Fuses

Removable Fuses

Reverse Polarity Protection on Power Input

N/A

N/A

Aux Port Fault Protection

N/A

N/A

N/A

Pixel Output Clock/Data Fault Protection
