Overview
This pixel protocol was designed by Sunmoon Microelectronics in China. SM16803 receives 8-bit data, but upscales this to a gamma-corrected 16-bit curve, giving the ability for high resolution, with fewer DMX channels required. The control circuit comes in a SOP8 package, allowing for more flexibility with LED choice.
Current Control
SM16803 has the ability to digitally control the current of the connected LEDs. Use the 4-bit current control per color to lower the brightness without sacrificing resolution, and tune the current of individual colors, allowing for more accurate color mixing. This individual current control can be set when configuring your PixLite Mk3 controller.

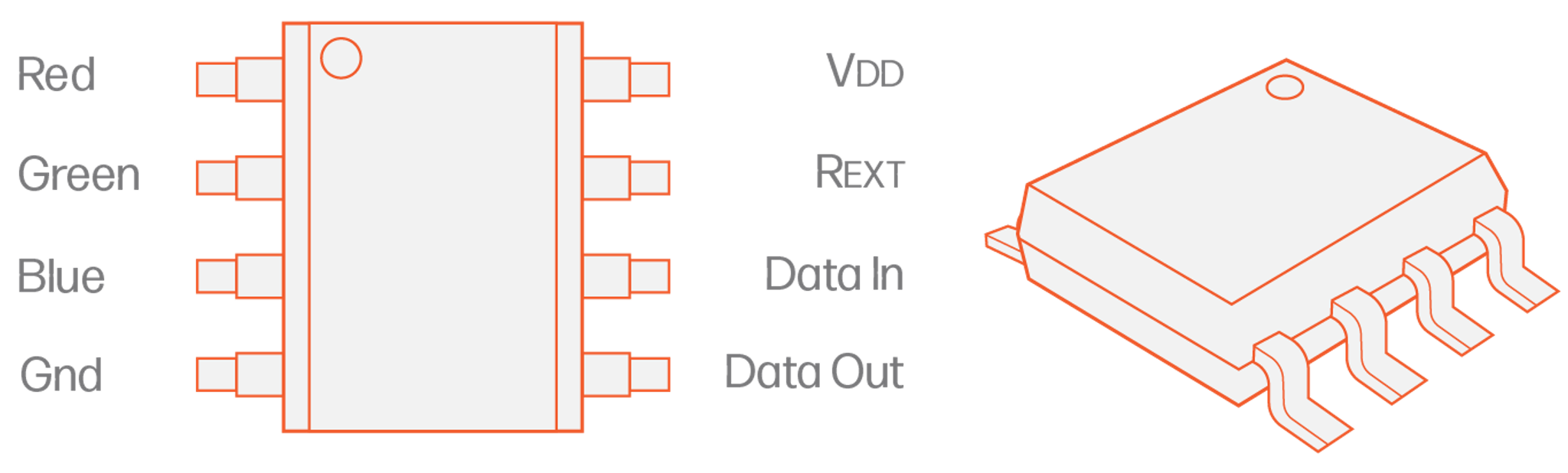

SM16803 pixel protocol
Specifications
PixLite Mk1 | |
PixLite Mk2 | |
PixLite Mk3 | |
Clock Type | Data-Only |
Color Resolution | 8 Bits |
Built-in Gamma Correction | Enhanced to 16 Bits (+8 Bits) |
Current Control | Per Color: 4 Bits |
Physical Package | SOP8 |
RGB | |
RBGW | |
Input Voltage | 5V |
Output Pixel Voltage | 5 - 30V |
PWM Rate | 4000Hz |
Suitable Camera | Up to 133fps |
Data Transfer Rate | 800kbps |
Redundant Data Line |
Considerations for Use
Advantages
- Very high PWM rate allows for filming these pixels with cameras up to 133fps
- Up to 30V, allowing for very long cable lengths
- Additional 8 bits of built-in gamma correction enhances LED output to 16 bits, making colors more accurate and dimming curves more smooth
Disadvantages
- Data-only restricts refresh rates to be limited by the speed of the protocol, which can be slow
- No redundancy in data
PixLite Support
Are you looking for SM16803 pixel drivers that work with Art-Net or sACN?
All PixLite Mk2 and Mk3 products support SM16803 as an available Pixel IC type, so get in touch with us to find out how the lighting specialists at Advatek can support you in your pixel lighting project.
