Economy with a first class feel
Delivering unforgettable results in live and standalone environments, the PixLite® E16-S Mk3 pixel controller has 16 outputs to connect to 16 runs of pixels, and provides unbeatable value for money. This lightweight but incredibly powerful device gives you ultimate control over your installation.
- 96 universes of Art-Net or sACN
- 16 non-powered pixel outputs
- Over 50+ pixel protocols supported
- MicroSD for Advatek SHOWTime™
- Auxiliary port for DMX512 In/Out
- Configure using Advatek Assistant
- Electrical fault protection on all ports
- Five-year warranty and global certifications
Economical on cost, mighty on delivery
The PixLite® E16-S Mk3 is an economical, but powerful pixel LED controller built upon Advatek’s 3rd generation Mk3r.
The PixLite® E16-S Mk3 drives up to six universes of data on each of its 16 outputs, for a total of 96 universes of LED pixel control. This mighty, budget-friendly pixel controller is suitable for installations where pixel power is not routed through the pixel controller.
Advatek's Mk3 family of pixel controllers is tested and certified for professional and commercial applications. Wherever your project is, you can confidently deploy an Advatek pixel solution with class-leading value, performance and features. The Mk3 family is protected electrically, won't interfere with other building management and control systems or affect other sensitive RF, network and communications infrastructure.
Advatek equipment is proudly made in Australia for ultimate manufacturing quality control and is also covered by a new industry leading, five-year product warranty for your absolute peace of mind.
Powered by the mighty PixLite® Mk3 processor
PixLite® Mk3 is Advatek's state-of-the-art processor. It uses sophisticated third generation firmware to enable totally unforgettable lighting displays.
Mighty, budget-friendly pixel controller, suitable for installations where pixel power is not routed through the controller.
Drives up to six universes of data on each of its 16 outputs, for a total of 96 universes of LED pixel control.
Specifications
Ethernet Ports | 1 x 10/100 Mbit/s |
microSD Card Slot | |
Auxiliary Port | 1 x RS485 Input/Output |
Pixel Outputs | 16 x Non-Powered |
Dimensions | 114.5 x 149.5 x 35.5mm |
Weight | 0.2kg |
Enclosure Material | ABS |
Mounting Options | Wall & Din-Rail Mountable |
Input Power | 5V - 24V DC |
Maximum Power Consumption | 3.5W |
Ambient Operating Temperature | -20°C to +70°C |
Flexibility in the palm of your hand

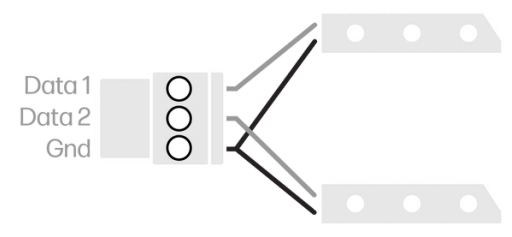

Use optional expanded mode to get twice as many digital outputs for faster refresh rates, not to mention greater flexibility when working with data-only pixels.
RGB
RGBW
Pixel Outputs
With expanded mode enabled, control up to 32 pixel outputs.
Freely alter clocked pixel types with adjustable speeds. A function that allows you to optimize refresh rate with data cable performance. Pixel mapping options are available on every output. This means the way pixels appear can be controlled. Create zig-zag patterns, change the color order, group pixels together or reverse them, utilize null pixels or limit their brightness – there are so many customizable options!
