The all new Advatek PixLite® Mk3 E-Series

Advatek PixLite® Mk3 E-Series LED pixel controllers

Powerful yet Economical Advatek PixLite® E-series LED pixel controllers

The most cost-efficient commercial-grade pixel controllers in the world. Representing the pinnacle of over ten years of engineering experience, we have created a series of controllers that deliver on performance without breaking your budget.

Advatek PixLite® E-series pixel controllers are an economical, but powerful series of pixel LED controllers built upon Advatek’s 3rd generation PixLite® Mk3 processor.

Our ground-breaking PixLite® Mk3 processor uses sophisticated 3rd generation firmware that provides the commands, logic and complex calculations to enable the device to drive the world’s most amazing lighting displays.

As the global semiconductor shortage continues to drive the price of pixel controllers up, our engineers have worked to offset these high costs with the innovative design of the E-series, which represents the best features of the A-series controllers at a price that will suit almost every installation budget.

Advatek E4-S
Advatek E4-S

With the PixLite® E4-S Mk3, drive up to 6 universes of data on each of its 4 outputs for a total of 24 universes of LED pixel control. Suitable for installations where pixel power is not routed through the pixel controller.

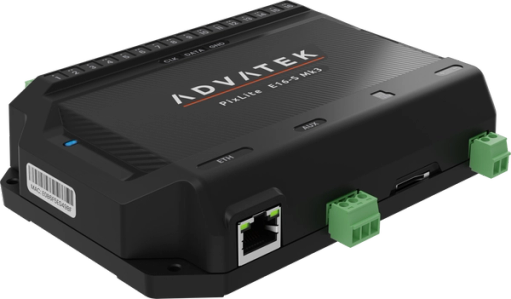

Advatek E16-S Mk3
Advatek E16-S Mk3

Or, with the PixLite® E16-S Mk3 drive up to 6 universes of data on 16 outputs for a total of 96 universes of LED pixel control. Also suitable for installations where pixel power is not routed through the pixel controller.

Compare the PixLite® Mk3 E-Series with the A-Series

Feature

E - Series

A - Series

PixLite® Mk3 Processor

RGB Pixels per Output

1020

1020

Extreme Refresh Rates

Same processing capability as A Series

Web-based Management Interface

microSD card slot for Advatek SHOWTime™

Pixels can be powered through PixLite®

Smart Electronic Fusing

Voltage and Current Monitoring

Ethernet Speed

10/100 Mbit/s

Gigabit

Number of Ethernet Ports

1

2

Universe Data Hardware Firewall

Cost

Approximately 20 - 30% less cost per output vs A-series



Powered by the mighty PixLite® Mk3 processor

PixLite® Mk3 is Advatek's state-of-the-art processor. It uses sophisticated third generation firmware to enable totally unforgettable lighting displays.

Advatek PixLite® Mk3 control board
01

Gamma correction for pixels of all resolutions. Dimming curves can be adjusted to better match the human eye, no longer limited to pixels above 8-bits. Pixels will appear more vivid and accurate.

02

Extremely fast refresh rates. The Mk3 processor can handle hundreds of frames per second, allowing for fast and dynamic effects displayed with higher reliability.

03

Dithering. Artificially generate higher resolution pixel control, to make low-resolution pixels appear much higher.

04

Dynamic adjustment. Thanks to Auto-Sync, the outgoing frame rate will dynamically adjust to the incoming frame, even without an external synchronization source. This reduces the chance of out-of-sync pixel systems and tearing.

Discover the PixLite® E-Series now



Mk3

PixLite® E16-S Mk3

E16-S Mk3
Standard Range

The most cost-efficient 16-output commercial grade pixel controller in the world, the E16-S Mk3 drives up to 96 universes of LED pixel control.

Mk3

PixLite® E4-S Mk3

E4-S Mk3
Standard Range

The E-series LED pixel controller is made for tighter budgets thanks to its ability to drive up to 24 universes of LED pixel control and route power directly to LEDs.
