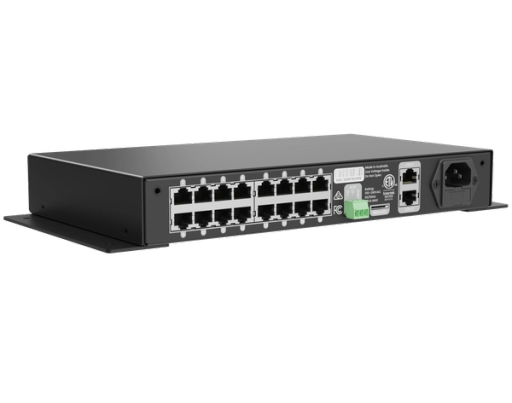

Advatek PixLite® T16X-S Mk3
Maximum Flexibility and Cost Efficiency.

The PixLite® T16X-S Mk3 is a powerful long-range pixel LED controller that joins Advatek's bestselling T8-S Mk3 controller. This new model was developed with 16 output connectors to meet demand from our customers for an even more powerful long-range solution in a reliable, user-friendly system.

  • 96 universes of Art-Net or sACN
  • Connect up to 16 R1 or R2 receivers
  • over 80+ pixel protocols supported
  • microSD for Advatek SHOWTime™
  • Auxiliary port for DMX512 In/Out
  • Configure using Advatek Assistant 3
  • Electrical fault protection on all ports
  • Five-year warranty and global certifications

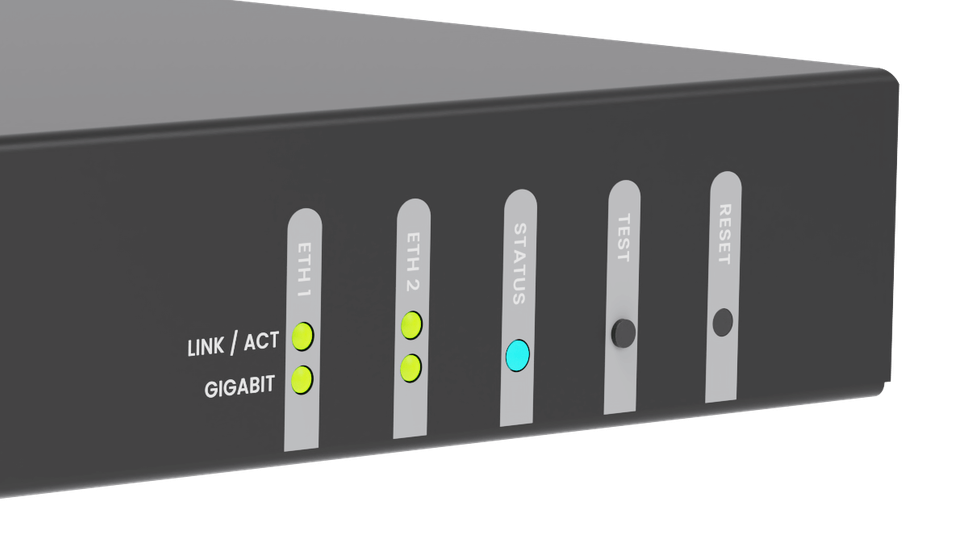

PixLite® T16X-S Mk3 Detail
PixLite® T16X-S Mk3 Detail
PixLite® T16X-S Mk3 Detail
PixLite® T16X-S Mk3 Detail

More Pixels in more locations with the PixLite® T16X-S Mk3.

The PixLite® T16X-S Mk3 is a powerful long-range pixel LED controller that joins Advatek's bestselling T8-S Mk3 controller. This new model was developed with 16 output connectors to meet overwhelming demand from our customers for an even more powerful long-range solution in a reliable, user-friendly system.

Advatek equipment is proudly made in Australia for ultimate manufacturing quality control and is also covered by a five-year product warranty for your absolute peace of mind.

Powered by the mighty PixLite® Mk3 processor

PixLite® Mk3 is Advatek's state-of-the-art processor. It uses sophisticated third generation firmware to enable totally unforgettable lighting displays.

Advatek PixLite® Mk3 control board
01

Gamma correction for pixels of all resolutions. Dimming curves can be adjusted to better match the human eye, no longer limited to pixels above 8-bits. Pixels will appear more vivid and accurate.

02

Extremely fast refresh rates. The Mk3 processor can handle hundreds of frames per second, allowing for fast and dynamic effects displayed with higher reliability.

03

Dithering. Artificially generate higher resolution pixel control, to make low-resolution pixels appear much higher.

04

Dynamic adjustment. Thanks to Auto-Sync, the outgoing frame rate will dynamically adjust to the incoming frame, even without an external synchronization source. This reduces the chance of out-of-sync pixel systems and tearing.

Advatek PixLite® T16X-S Mk3 Long Range Controller.
Advatek PixLite® T16X-S Mk3 Long Range Controller.

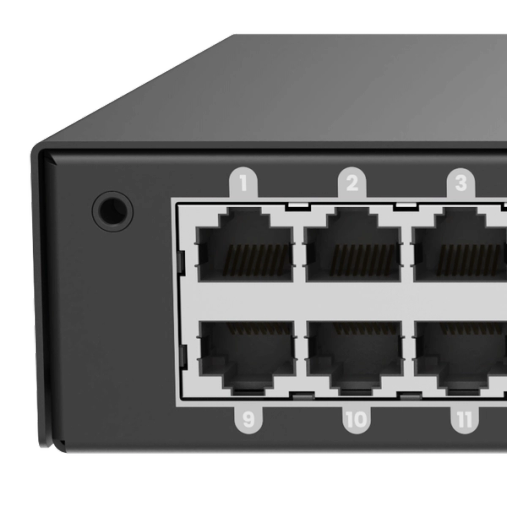

With 16 physical output connectors, each supporting half the signal capacity of the T8, think of the T16 as the T8, with each of its 8 outputs split in two.

Chat to one of our experts.
PixLite® T16X-S Mk3.
PixLite® T16X-S Mk3.

Capable of transmitting data over a distance of up to 300m, supporting up to 96 universes of data to sixteen PixLite® R1/R2 receivers.

Chat to one of our experts.
R1F-S and T16X-S Mk3

When a discrete location needs a single run of pixels, the PixLite® R1F-S and the PixLite® T16X-S Mk3 are the best choice. Fewer Transmitters, no wasted pixel outputs and reduced system cost and commissioning time.

Specifications

Ethernet Ports

2 x 10/100/1000 Mbit/s

microSD Card Slot

Auxiliary Port

1 x RS485 Input/Output

Data Outputs (to receivers)

16 x RJ45

Dimensions

282 mm x 42 mm x 169 mm

Weight

1.32 kg

Enclosure Material

Aluminum

Mounting Options

Direct Panel, Wall & Rack Mountable

Input Power

100V-240V AC

AC Fuse

1A M205

Ambient Operating Temperature

-10°C to +60°C

Compare the PixLite® Range

Advatek A4-S Mk3
Advatek E4-S Mk3
Advatek E16-S Mk3
Advatek T8-S Mk3
Advatek T16X-S Mk3
Advatek R2F-S
Advatek R4D-S
Advatek R1F-S

A4-S Mk3

E4-S Mk3

E16-S Mk3

T8-S Mk3

T16X-S Mk3

R2F-S

R4D-S

R1F-S

Pixel Outputs

4

4

16

16 (8 receivers)

16 (16 receivers)

2

4

1

Max RGB pixels per Output

1020

1020

1020

N/A

N/A

1020

510

1020

Powered Pixel Outputs

N/A

N/A

Max RGBW Pixels per Output

768

768

768

N/A

N/A

768

384

768

Expanded Mode Available

Clocked Pixels Supported

SHOWTime™

N/A

N/A

N/A

Record Live Data as Scenes

N/A

N/A

N/A

Create up to 25 Powerful Triggers

N/A

N/A

N/A

Use Scenes to Create Playlists

N/A

N/A

N/A

Playback to Pixel Outputs and/or Aux Port

N/A

N/A

N/A

Live and Programmed Intensity Control

N/A

N/A

N/A

N/A

Input Universes

24

24

96

96

96

N/A

N/A

N/A

sACN & Art-Net Supported

N/A

N/A

N/A

Art-Sync & sACN Sync

N/A

N/A

N/A

Universe Data Hardware Firewall

N/A

N/A

N/A

Monitor Data Source

N/A

N/A

N/A

Advanced Diagnostic Information per Universe

N/A

N/A

N/A

Auto Sync to Data Source Failback

N/A

N/A

N/A

Pixel Processing

Mk3

Mk3

Mk3

Mk3

Mk3

N/A

N/A

N/A

Number of Pixel Protocols Supported

80+

80+

80+

80+

N/A

N/A

N/A

N/A

Extreme Refresh Rates

N/A

N/A

N/A

Continued Support for New Pixel Protocols

N/A

N/A

N/A

Gamma Correction

N/A

N/A

N/A

Dithering

N/A

N/A

N/A

Advanced Mapping Options

N/A

N/A

N/A

Auto Patch

N/A

N/A

N/A

Hold Last Frame on Timeout Option

N/A

N/A

N/A

Auto Synchronization to Data Source

N/A

N/A

N/A

Drop Frame on Overrun Option

N/A

N/A

N/A

Adjustable Clock Speed

N/A

N/A

N/A

Power Management

Extensive

N/A

N/A

Limited

Limited

Smart Electronic Fuses on Pixel Outputs

N/A

N/A

Max Current per Pixel Output

7A

N/A

N/A

N/A

N/A

7.5A

7.5A

10A

Power Input Connector

1x Quick Connect Clamp

1 x Screw Terminal

1 x Screw Terminal

1x IEC

1 x IEC

1 x Quick Connect Clamp

1 x Quick Connect Clamp

1 x Screw Terminal

Pixels can be Powered Through PixLite®

N/A

N/A

Pixel Output Current Measurement

N/A

N/A

N/A

Device Monitoring

Extensive

Extensive

Extensive

Extensive

Extensive

N/A

N/A

N/A

Frame Rate Monitoring

N/A

N/A

N/A

Output Current Monitoring

N/A

N/A

N/A

N/A

N/A

N/A

N/A

Temperature Monitoring

N/A

N/A

N/A

Min & Max Temperature Monitoring

N/A

N/A

N/A

Input Voltage Monitoring

N/A

N/A

N/A

N/A

N/A

N/A

N/A

View Physical / Digital Version Info

Extensive

Extensive

Extensive

Extensive

Extensive

N/A

N/A

N/A

Ethernet Monitoring

N/A

N/A

N/A

Per-Universe Packet Monitoring

N/A

N/A

N/A

Sync Status

N/A

N/A

N/A

Discovery and Management

Advatek Assistant 3

Advatek Assistant 3

Advatek Assistant 3

Advatek Assistant 3

Advatek Assistant 3

N/A

N/A

N/A

Dynamic Web Browser Management Interface

N/A

N/A

N/A

Import / Export Configuration

N/A

N/A

N/A

Discovery / Recovery Protocol

Advanced

Advanced

Advanced

Advanced

Advanced

N/A

N/A

N/A

HTTP API

N/A

N/A

N/A

WebSocket API

N/A

N/A

N/A

VLANs and VPNs Supported

N/A

N/A

N/A

Device Name for Easy Identification

N/A

N/A

N/A

Ethernet Ports

Dual

Single

Single

Dual

Dual

N/A

N/A

N/A

Ethernet Speed

Gigabit

10/100 Mbps

10/100 Mbps

Gigabit

Gigabit

N/A

N/A

N/A

DHCP Addressing

N/A

N/A

N/A

Static IP Addressing

N/A

N/A

N/A

AutoIP Addressing

N/A

N/A

N/A

Aux Port

N/A

N/A

N/A

DMX512 Input

N/A

N/A

N/A

DMX512 Output

N/A

N/A

N/A

Hold Last Frame on Timeout Option

N/A

N/A

N/A

Auto Synchronization to Data Source

N/A

N/A

N/A

Drop Frame on Overrun Option

N/A

N/A

N/A

Mounting Options

19" Data Rack Mount

DIN Rail Mount

Flat Surface Mount

Certifications

ETL Listing (UL)

RoHS

UKCA

CE

RCM

FCC

ICES3

Fault Protection

ESD Protection on all I/O

Pixel Output Power – Over Current & Short Circuit Protection

Smart Electronic Fuses

N/A

N/A

N/A

N/A

Removable Fuses

Removable Fuses

Reverse Polarity Protection on Power Input

N/A

N/A

Aux Port Fault Protection

N/A

N/A

N/A

Pixel Output Clock/Data Fault Protection
