Meet the T8-S Mk3's other half

Advatek PixLite® R2F-S
Meet the T8-S Mk3's other half

Ensure larger installations don't lose their impact with the PixLite® R2F-S pixel control receiver. When paired with the T8-S Mk3 transmitter, the receiver has the power to drive up to 2,040 RGB pixels.

  • Industrial grade fault protection
  • Receives data up to 300+m from PixLite T8-S
  • Din-rail and wall mountable
  • Sleek design with flip lid access to all fuses
  • Compact form factor

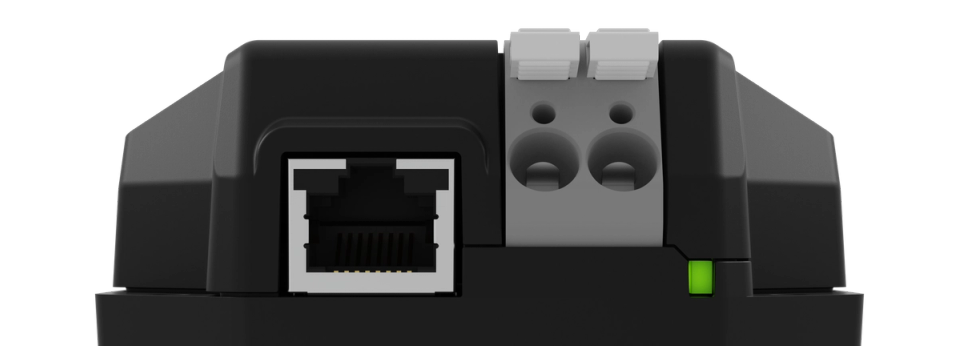

Advatek PixLite® R2F-S Long Range Receiver back closeup view
Advatek PixLite® R2F-S Long Range Receiver side view
Advatek PixLite® R2F-S Long Range Receiver closeup front view

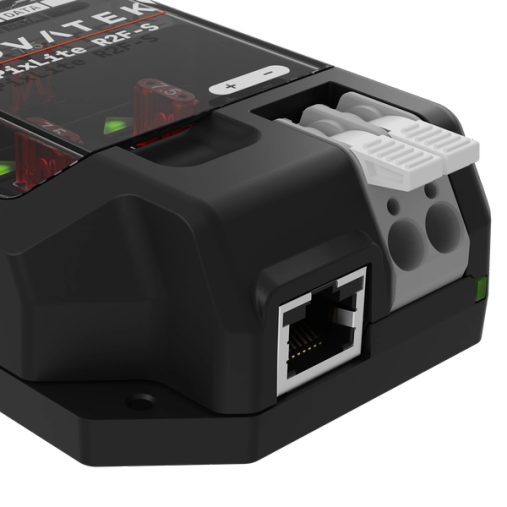

Advatek PixLite® R2F-S Long Range Receiver front angle view

Engineered to deliver, built to last

The PixLite® R2F-S comes complete with all the protection you need for peace of mind with professional installations. Paired with a PixLite® T8-S Mk3 controller, the PixLite® R2F-S receives differential (long-distance) data and converts it into a pixel ready signal.

When it comes to creating unforgettable, professional-grade displays over longer distances, you’ll find it impossible to ignore the benefits of the slimline form and ease of use that you get with the PixLite® R2F-S receiver.

The PixLite® R2F-S receiver features industrial strength fault protection on all inputs and data outputs. This makes this pixel receiver device highly reliable in a wide range of settings, and greatly reduces the likelihood of equipment failure over time. Short circuit and ESD protection, along with protection against common DC voltage levels, will grant you peace of mind on your next commercial or industrial installation. Each output also includes a 7.5A mini blade fuse which helps preserve the safety of the device. Plus, a built-in spare fuse ensures there's always a quick replacement on hand.

Advatek equipment is proudly made in Australia for ultimate manufacturing quality control and is also covered by a new industry leading five-year product warranty for your absolute peace of mind.

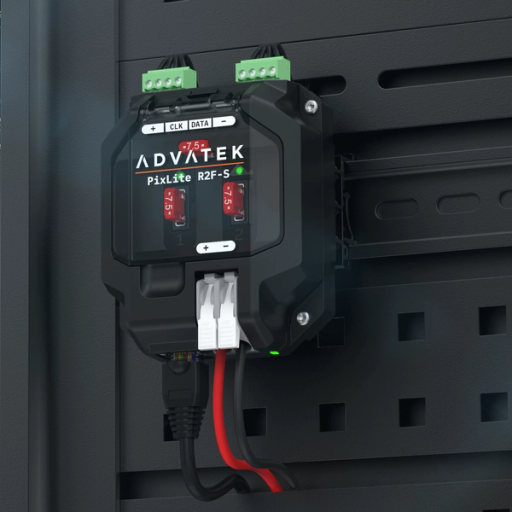

R2F-S installed
R2F-S installed

Device safety is preserved, thanks to the 7.5A mini-blade fuses on each output. Plus, a built-in spare fuse always ensures a quick replacement on hand

Advatek PixLite® R2F-S

Industrial strength fault protection on all inputs and data outputs. And short circuit, ESD, and common DC voltage level protection.

Specifications

Fused Pixel Outputs

2

Data Inputs (from Transmitter)

1

Dimensions

95 x 78 x 33mm

Weight

0.2kg

Enclosure Material

ABS

Mounting Options

Wall & Din-Rail Mountable

Input Power

5V - 24V DC

Per Output Current Limit

7.5A

Total Current Limit

15A

Ambient Operating Temperature

-20°C to +55°C

Compare the PixLite® range

Advatek A4-S Mk3
Advatek E4-S Mk3
Advatek E16-S Mk3
Advatek T8-S Mk3
Advatek R2F-S
Advatek R4D-S

A4-S Mk3

E4-S Mk3

E16-S Mk3

T8-S Mk3

R2F-S

R4D-S

Pixel Outputs

4

4

16

16 (8 receivers)

2

4

Max RGB pixels per Output

1020

1020

1020

N/A

1020

510

Powered Pixel Outputs

N/A

Max RGBW Pixels per Output

768

768

768

N/A

768

384

Expanded Mode Available

Clocked Pixels Supported

SHOWTime™

N/A

N/A

Record Live Data as Scenes

N/A

N/A

Create up to 25 Powerful Triggers

N/A

N/A

Use Scenes to Create Playlists

N/A

N/A

Playback to Pixel Outputs and/or Aux Port

N/A

N/A

Live and Programmed Intensity Control

N/A

N/A

Input Universes

24

24

96

96

N/A

N/A

sACN & Art-Net Supported

N/A

N/A

Art-Sync & sACN Sync

N/A

N/A

Universe Data Hardware Firewall

N/A

N/A

Monitor Data Source

N/A

N/A

Advanced Diagnostic Information per Universe

N/A

N/A

Auto Sync to Data Source Failback

N/A

N/A

Pixel Processing

Mk3

Mk3

Mk3

Mk3

N/A

N/A

Number of Pixel Protocols Supported

60+

60+

60+

60+

N/A

N/A

Extreme Refresh Rates

N/A

N/A

Continued Support for New Pixel Protocols

N/A

N/A

Gamma Correction

N/A

N/A

Dithering

N/A

N/A

Advanced Mapping Options

N/A

N/A

Auto Patch

N/A

N/A

Hold Last Frame on Timeout Option

N/A

N/A

Auto Synchronization to Data Source

N/A

N/A

Drop Frame on Overrun Option

N/A

N/A

Adjustable Clock Speed

N/A

N/A

Power Management

Extensive

N/A

Limited

Limited

Smart Electronic Fuses on Pixel Outputs

N/A

Max Current per Pixel Output

7A

N/A

N/A

N/A

7.5A

7.5A

Power Input Connector

1x Quick Connect Clamp

1 x Screw Terminal

1 x Screw Terminal

1x IEC

1 x Quick Connect Clamp

1 x Quick Connect Clamp

Pixels can be Powered Through PixLite®

N/A

Pixel Output Current Measurement

N/A

Device Monitoring

Extensive

Extensive

Extensive

Extensive

N/A

N/A

Frame Rate Monitoring

N/A

N/A

Output Current Monitoring

N/A

N/A

N/A

N/A

Temperature Monitoring

N/A

N/A

Min & Max Temperature Monitoring

N/A

N/A

Input Voltage Monitoring

N/A

N/A

N/A

N/A

View Physical / Digital Version Info

Extensive

Extensive

Extensive

Extensive

N/A

N/A

Ethernet Monitoring

N/A

N/A

Per-Universe Packet Monitoring

N/A

N/A

Sync Status

N/A

N/A

Discovery and Management

Advatek Assistant 3

Advatek Assistant 3

Advatek Assistant 3

Advatek Assistant 3

N/A

N/A

Dynamic Web Browser Management Interface

N/A

N/A

Import / Export Configuration

N/A

N/A

Discovery / Recovery Protocol

Advanced

Advanced

Advanced

Advanced

N/A

N/A

HTTP API

N/A

N/A

WebSocket API

N/A

N/A

VLANs and VPNs Supported

N/A

N/A

Device Nickname for Easy Identification

N/A

N/A

Ethernet Ports

Dual

Single

Single

Dual

N/A

N/A

Ethernet Speed

Gigabit

10/100 Mbps

10/100 Mbps

Gigabit

N/A

N/A

DHCP Addressing

N/A

N/A

Static IP Addressing

N/A

N/A

AutoIP Addressing

N/A

N/A

Aux Port

N/A

N/A

DMX512 Input

N/A

N/A

DMX512 Output

N/A

N/A

Hold Last Frame on Timeout Option

N/A

N/A

Auto Synchronization to Data Source

N/A

N/A

Drop Frame on Overrun Option

N/A

N/A

Mounting Options

19" Rack Mount

Din-Rail Mount

Direct Wall Mount

Direct Panel Mount

Certifications

ETL Listing (UL)

RoHS

UKCA

CE

RCM

FCC

ICES3

Fault Protection

ESD Protection on all I/O

Pixel Output Power – Over Current & Short Circuit Protection

Smart Electronic Fuses

N/A

N/A

N/A

Removable Fuses

Removable Fuses

Reverse Polarity Protection on Power Input

Aux Port Fault Protection

N/A

N/A

Pixel Output Clock/Data Fault Protection

N/A

Learn more
Learn more
Learn more
Learn more
Learn more
